The InJet® 388 DOUBLE TRIPLE CRRD offers more than twice the cleaning capacity of the InJet® 388 TRIPLE CRRD and is a high-performance vertical spray system for cleaning boards after soldering, for which it was developed.
The washing system can also be used for high-capacity removal of solder paste and SMT adhesive from stencils, PumpPrints, squeegees, and misprints.

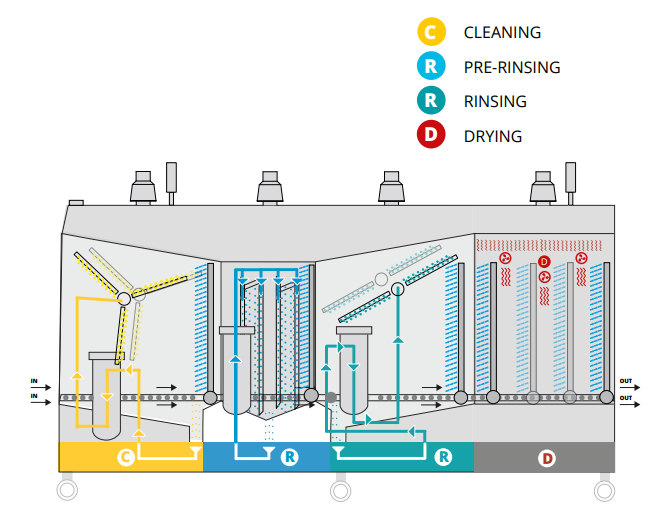

All processes are fully automated and take place in 4 process chambers. Washing takes place in the first inlet chamber, after which the washed part is automatically transported through the pre-rinse chamber, where the PCBs are pre-rinsed. The final rinsing process takes place in the third chamber. The last fourth chamber is designed for the drying process. Three chambers (cleaning, rinsing, and drying) can be used simultaneously, which increases the capacity of the machine and reduces cross-contamination compared to single-chamber devices.
The machine has two positions for the PCB frame (two slots), which means that at full capacity, six frames with PCBs are processed simultaneously.
All InJet®, AirJet® and Sonix® cleaning systems developed by DCT are characterized by the highest quality on the market, high reliability, ease of use, simple maintenance, extremely long service life and the longest warranty on the cleaning system market.
100% RESPONSIBILITY FOR THE CLEANING PROCESS
We take full responsibility for the functionality of the cleaning process.
Complete cleaning solutions
We can offer complete cleaning solutions for all existing applications.
Quality of cleaning systems
We manufacture cleaning systems exclusively in stainless steel because it has long-term advantages.
pure quality of cleaning agents
We care about the functionality of the cleaning chemistry, but also about ecology.
Technical and economic improvements
With every project, our greatest motivation is to bring the customer a better technical and economic solution.
Development and customization
By continuously developing our cleaning technologies, we are moving forward and responding to developments in the electronics industry.
Democenters Worldwide
We give customers the opportunity to actually test the cleaning solution.
Direct service Support
For us, service support does not end with the installation, it begins.
Our references show the diversity of our customers and how we have been able to
to tailor our services to their needs and expectations.
